| Self-calibrating optical probe heads for the scanning of supply meters. |
FUA919SZ Optical Probes for Current Meters Type
● Self-calibrating
optical probe heads for the
scanning of supply meters.
● Existing energy
meters that do not have a pulse output can be included in the energy management
at low cost and with no conversion required. Furthermore, the energyproportional
pulses of electronic meters can be registered.
● Suitable for
various fields of application, e.g. industrial systems, large houses with
several flats, shopping centres, trade fairs and exhibitions, holiday and
camping resorts, hotel and apartment installations, municipalities and authorities.
|
| Technical Data: |
| Sensor housing: |
40 x 20 x 20 (W x H x D) |
| Protection system: |
IP 50 |
| Material: |
plastic, black |
| Operating voltage: |
5.5 … 30VDC |
| Max. current consumption: |
5mA |
| Function control: |
through LED |
| Signal output: |
transistor open collector PNP
(1k protective resistor) |
| Max. sampling rate: |
3 pulses/s |
| Temperature range: |
-20 … 60°C |
| Connecting cable: |
3m long
with ALMEMO® connector |
Max. distance
from meas. instrument: |
15m |

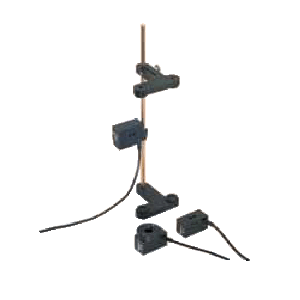

| Types: |
| FUA919SZB |
Optical probe head with removable adhesive
tape |
| FUA919SZC |
Optical probe head with magnetic mounting (Ø32 x
8mm) (only for meters with pulse LED) for measurements in test laboratories
and for portable operation |
| FUA919SZD |
Optical probe head with adjustable stand (max. span
400mm) and suction cup fixture for mobile
operation at supply meters |
|
| |
|
|
 | |
 |
|
 |
|
