Technical Features:
●
Climate printer or climate data logger for room monitoringwith
mains or battery operation.
● Various combinations
of measuring ranges can be set for temperature and humidity.
● One measuring
input, two measuring channels can be scanned.
● Two output
sockets for analog output, digital
interface, trigger input, alarm contacts.
● Easy-to-read
8-digit LCD double display.
● Key switch
for protection against unauthorised access.
● Data Recording:
2 diagrams side-by-side, optionally 2 lines in a diagram or list printout,
time, date, limit values, paper feed in mm or print cycle, start/stop of
measurement via keypad, 25-digit record headline, programmable via software
and data cable. Data cable allows for PC online measurements.
● Data Logger
Functions:
All cyclic acquired data will be stored and can be
subsequently provided, completely or in extracts, as output in different
formats. Plots with free selectable parameters, list and alarm value printout,
data transfer to PC are available.
The function ´Daily Printout´, triggered by the changing of the date, can
be selected instead of the cyclic printout.
| Extent of the delivery |
| mA62907K |
incl. mains adapter ZB6290NA 7.5V/450mA,
2 rolls temperature sensitive paper, operating instructions, ALMEMO®

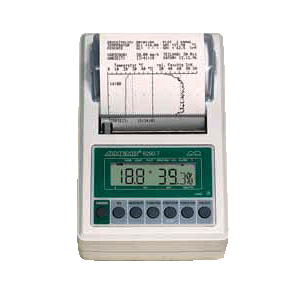

Manual including software AMR-Control Climate printer ALMEMO® 6290-7K |
| mA62907KS |
Climate data logger ALMEMO® 6290-7KS |
|
|
| Technical Data: |
| Measuring inputs: |
1 ALMEMO® socket for
ALMEMO® flat connector |
| Measuring channels: |
2 channels (temp./humidity) |
| Measuring ranges: |
temp. -20.00 … 80.00°C
humid. 0.0 … 100.0%H |
| Sensor power supply: |
approx. 9V unregulated,
max. 80mA |
| Equipment: |
| Display: |
61/2 digits, 7-segment,
2 digits, 16-segment, 12mm |
| Keypad: |
7 keys with key switch |
| Memory (type S): |
512kB (100000 values)
buffered with lithium battery |
| Time and date: |
real time clock
buffered with lithium battery |
| Built-In Printer: |
thermal, dot matrix (7x5) |
| Character size: |
2.4 x 1.1mm |
| Number of columns: |
40 characters/line |
| Print speed: |
0.6 lines/s |
| Paper: |
Jujo Paper Co. TP50K5-A
80mm wide, Ø 40 |
| Outputs: |
2 ALMEMO® sockets |
| Power supply: |
4 NiCd batteries, 4.8V, 0.8Ah
with quick charge circuitry |
| Mains adapter: |
ZB 6290-NA 7.5 V, 450mA,
charging time: approx. 3h |
| Current consumption: |
OFF: approx. 0.04mA
ON without print: appr. 11mA
ON with print: approx. 500mA |
Operating time normal:
in
sleep mode: |
90 hrs without print
alphanumerical: 5000 cycles
graphical: 15000 cycles |
| Power supply control: |
automatic with visual alarm |
| Housing: |
H180 x W115 x T70mm
ABS high impact strength |
| Accessories: |
| ZB1040TP10 |
Temperature-sensitive paper 10 rolls |
| ZB6290UK |
DC voltage adapter cable
10 to 30VDC, 12V/250mA electr. isol. |
| ZA1601RK |
ALMEMO® recording cable
-1.25 to 2.00V |
| ZA1909DK5 |
ALMEMO® data cable
V24 interface, electr. isol. |
| ZA1999NK5 |
ALMEMO® network cable
current-loop, electr. isol. |
| ZA1000EGK |
ALMEMO® input/output cable
for triggering, limit value alarm |
|
