| Wind direction sensor for measuring the horizontal wind direction. |

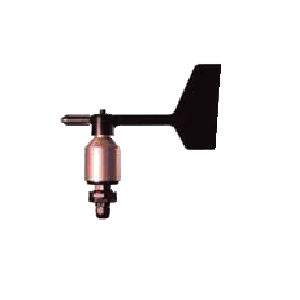

FVA614 Wind
Direction Sensor Type
● Wind direction sensor
for measuring the horizontal wind direction.
● Wind vane made
from stable plastic, electronics in weatherresistant aluminium housing,
rotating mechanics guided in high-quality ball bearings.
● A special labyrinth
reliably protects without friction and guards against water penetrating
into the housing.
● With electronically
controlled heating for winter operation to prevent ball bearings and external
rotational parts from freezing. |
| Technical Data: |
| Measuring range: |
0 to 360° |
| Accuracy: |
±5° |
| Resolution: |
11.25° (5 bit Gray code) |
| Measuring principle: |
optoelectronically (slotted disk) |
| Sensor power supply: |
9?30VDC
through ALMEMO® device |
| Heating: |
24VAC/DC max. 20W |
| Operative range: |
-30 to +70 °C, with heating |
| Cable: |
12m long, LiYCY 6 x 0.25mm2 |
| Connection: |
Adapter cable with ALMEMO®
connector including supply cable
for heating
(length 1.5 m, free ends)
A mains supply unit must be
provided by the user on site. |
| Installation: |
e.g. pole tube with holding thread
PG21 / drilling 29mm Ø |
| Weight: |
1100g |
| Type: |
| FVA614 |
Wind vane including ALMEMO® connector
(0?2V) with 12m cable |
| Accessories: |
| ZB9060K(L) |
Longer cable, please specify length (L) |
|
| |
|
|
 | |
 |
|
 |
|
