| Rainfall sensor with sieve bar for protection against insects or other contaminations. |

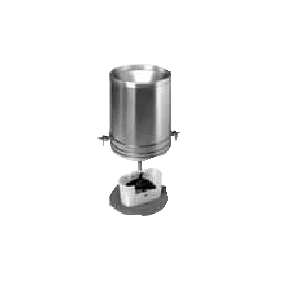

FRA916 Rainfall
Sensor Type
● Rainfall sensor according
to the tipping scale principle with electronic counting of the table tilts
and direct conversion into the amount of rainfall.
● Rainfall sensor
with sieve bar for protection against insects or other contaminations. |
| Technical Data: |
| Measuring range: |
0.2mm/pulse |
| Resolution: |
0.2mm |
| Capture cross section: |
400cm² |
| |
| Heating : |
24 V DC/AC, max. 30 W |
| Operating range : |
0 to +50 °C,
with heating -30 to +50 °C |
| Cable : |
12 m |
| Connection : |
Adapter cable with ALMEMO®
connector including supply cable
for heating (length 1.5 m, free
ends) A mains supply unit must
be provided by the user on site. |
| Material of housing: |
corrosion-proof metal |
| Material of tipping scale: |
weather-resisting plastic |
| Dimensions: |
280mm high, 240mm Ø |
| Weight: |
2.4kg |
| Types: |
| FRA916 |
Rainfall sensor without heating includingALMEMO®
connector with 12m cable |
| FRA916H |
Rainfall sensor with heating in insulated metal housing
incl. ALMEMO® connector with 12m cable |
| Accessories: |
| ZB9916AF |
Push-in/put-up stand with mounting hose |
| ZB9060K(L) |
Longer cable, please specify length (L) |
|
| |
|
|
 | |
 |
|
 |
|
