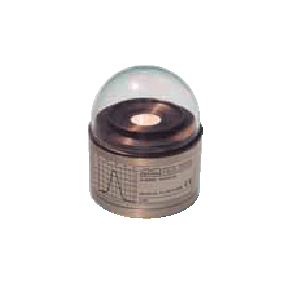

| Measuring head in anodized aluminum housing, with UVtransparent plastic dome |
FLA613VLM
Radiation measuring head Type
● Measuring head in
anodized aluminum housing, with UVtransparent plastic dome
● Rain-proof,
splash-protected system, with desiccant to prevent condensation forming
on the inside of the dome.
● Especially
suitable for measuring operations outdoors, e.g. in medical, biological,
and climate research, in weather information forecast systems, in agriculture,
and for the purposes of general information for the public
● The spectral
sensitivity of the receiver corresponds
approximately to that of the human eye.
|
| Technical Data: |
| Measuring range : |
0 to 170 klux (approx. 250 W/m2) |
| Spectral sensitivity : |
360 to 760 nm |
| Max. spectral sensitivity : |
550 nm |
| Signal output |
0 to 2 V |
| Power supply : |
+5 to +15 V |
| Mounting : |
2 screws, M4, in base plate |
| Cable passage : |
downwards |
| Housing : |
anodized aluminum |
| Diffusor : |
PTFE |
| Dome : |
PMMA |
| Cos correction : |
error f2 <3% |
| Linearity : |
<1% |
| Absolute error : |
< 10 % |
| Residual voltage (E = 0) : |
<10 mV |
| Nominal temperature : |
22 ± 2 °C |
| Operating temperature : |
-20 to +60 °C |
| Dimensions : |
Housing : 55 mm high
Dome : 40 mm high
Diameter : 80 mm |
| Weight : |
approx. 300 g |
| Types: |
| FLA613VLM |
Weather-resistant measuring head for
measuring the radiation intensity including cable, 1.5 m, and ALMEMO®
connector |
|
| |
|
|
 | |
 |
|
 |
|
