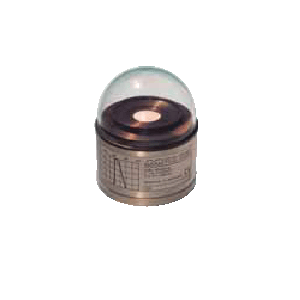

| Measuring head in anodized aluminium housing with a plastic dome that is transparent to UV light. |
FLA613UVA UVA
Radiation Probe Head Type
● Measuring head in
anodized aluminium housing
with a plastic dome that is transparent to UV light.
● Rain and splash-proof
system, additionally with desiccant to prevent dome from inside condensation.
● Particularly
suitable for outdoor measurements,
e.g. in medical and biological research, weather information and forecast
systems, climatology, agriculture and for general public information.
| Type: |
| FLA613UVA |
Weather-proof measuring head for measuring
the UVA radiation including cable, 1.5 m, and ALMEMO® connector |
|
| Technical Data: |
| Measuring range: |
0 to approx. 3mW/cm² |
| Spectral sensitivity: |
310 to 400nm |
| Maximum spectral sensitivity: |
335nm |
| Signal output: |
0V to 2V |
| Power supply: |
+5V to +15V |
| Mounting: |
2 screws M4, in base plate |
| Cable passage: |
downwards |
| Housing: |
anodized aluminium |
| Diffusor: |
PTFE |
| Dome: |
PMMA (transparent to UV) |
| Cos correction: |
error f2 < 3% |
| Linearity: |
< 1% |
| Absolute error: |
< 10% |
| Residual voltage: (E = 0) |
< 10% |
| Nominal temperature: |
22°C ±2°C |
| Operating temperature: |
-20°C to +60°C |
| Dimensions: |
housing: 55 mm high
dome 40 mm high
diameter: 80 mm |
| Weight: |
approx. 300 g |
|
| |
|
|
 | |
 |
|
 |
|
