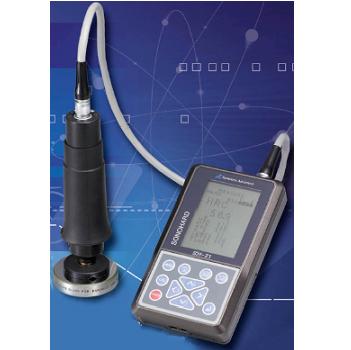

SH-21 휴대용 초음파 경도계
    · 고객선호도 :
    · 시중가격 :
    · 판매가격 :
    · 포 인 트 :
    · 수 량 :

회원가입을 하시면 할인된가격을 보실수 있습니다.
모든가격은부가세별도 입니다.
회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
카드결재시 세금계산서 발행 불가합니다.
배송은 평균 2~3일정도 예상됩니다.
                    (0)                     (0)                     (0)

Ultrasonic Handy Hardness Tester

Features of the SH-21

  • Quick measurement (few seconds)
  • Direct reading of hardness
  • Easy to use hand held probe can be quickly applied to a variety of surfaces from any direction.
  • Easy to use - no prior experience of hardness measurement techniques required
  • Built in memory for data and calibration points
  • Measures Vickers, Rockwell, Brinell and Shore scales
  • Interchangeable probes for use with different surface profiles - pipes - concave surfaces, gears valves etc.
  • Portable works with NiCd battery
Introduction to the SH21 - Handy Hardness Tester
The Handy Hardness Tester model SH-21 differs completely from traditional hardness testers.Instead of measuring the size of the indentation of the test sample using a microscope, it uses a diamond indenter equipped with a vibrating rod that presses on the test surface at a fixed load and then measures its hardness by applying ultrasonic vibrations and analyzing its damping effect. The technique is very reproducible which makes the SH21 a perfect tool for on-site measurements as for example maintenance of large scale structures, vehicles, ships, steel towers, bridges, aviation aircraft. It is ideal for inspection of difficult to get area such as crank shaft metal casts, gears and grooved area.



Easy to Use
The SH21 is very easy to use and requires no special knowledge of hardness testing in order to operate the instrument. The unit includes all four hardness scales and you can switch between them at the touch of a button. The current scale is always indicated on the display.
     To make a hardness measurement the probe is pressed against the surface to be measured and held in position for a few seconds until a reading is obtained. The result is immediately displayed in the selected hardness scale on the display. Several measurements can be taken sequentially and the average and standard deviation will be calculated automatically by the instrument.
     The calibration procedure is equally straightforward. A measurement is made on known standard test block and entered into memory as a calibration point. The tool is ideal for inspection and quality control applications in a production environment. It is light weight and portable and can be operated from rechargeable batteries or a power adapter.



Probes Attachments and Measuring Stand
Bellow are the dimensions of the probe with the standard attachment. It is also possible to have specific attachment for special applications such as for pipes materials and for inner races. To the right is the measuring stand used for small objects.

Specifications of the Handy Hardness Tester



Applications



Ordering Information
All models include one probe and cable, display unit, standard probe attachment, AC adapter/charger, test block (Vickers) instruction manual and carrying case. Includes all 4 hardness scales, manual /motorized probe, RS232 data output. Upper and lower limit switches, computes average and standard deviations of measured values. Prices
Model
SH-21-E2
2Kg Load. 9,000,000원
Accessories Price
SH-SO2 Measuring stand 1,500,000원
SH-PIPE Attachment for pipes 490,000원
SH-IN Attachment for inner races 490,000원
SH - HV Test block Vickers HV 600 430,000원
SH - HRC Test block Rockwell HRC 55 250,000원
SH - HB Test block Brinell HB 300 390,000원
SH - HS Test block Shore HS50 430,000원
PAPER 10 Rolls of Paper for printer 300,000원
PRT-CB Printer with Cable 1,270,000원
