| 쎈서 교환이 가능한 Ecotip 타입 경도계 , 기본형은 D type 쎈서 가 창착이 되어 있슴. 프린터 일체형 휴대용 경도계임 |
|
|
|
|

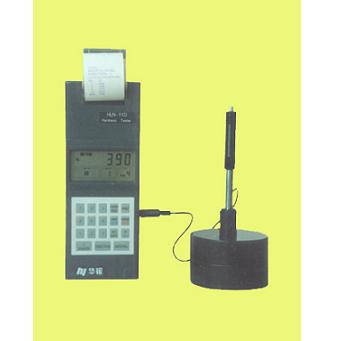

HLN-11 SERIES
MULTIFUNCTIONAL HARDNESS TESTER
|
This tester is suitable for the quick hardness test of metal materials. They feature high accuracy, reliable performance, easy operation and convenient taking. The measured Leeb hardness can be converted into the hardness of Brinell, Rockwell, Vickers and Shore according to different directions and can be converted and recorded automatically. |
Specifications of display unit
Power supply: 6.0V DC
Working temperature: 1-40 °C
Dimensions: 268 x 86 x 47mm
Weight: approx. 0.67kg
Main accessories
Small positioner: 1 pc.
Binder: 1 bottle
Leeb standardized block: 1 pc.
Charger: 1 pc. |
|
|
Specifications of impact body
| Type |
D |
DC |
D+15 |
G |
| Specifications |
| Measuring range |
330-890HL |
330-890HL |
346-890HL |
300-650HLG |
| Impact capacity |
11Nmm |
11Nmm |
11Nmm |
90Nmm |
| Dimensions |
Φ20x150mm |
Φ20x85mm |
Φ20x165mm |
Φ20x250mm |
| Testing direction |
Arbitrary |
| Weight |
75g |
50g |
80g |
250g |
| Mass of impact body |
5.5g |
5.5g |
5.5g |
20g |
|
Diameter of tungsten carbide ball |
3mm |
3mm |
3mm |
5mm |
| Application range |
Basic type, suitable for most of hardness tests.
|
Suitable for hard- ness measuring of inner holes and small space.
|
Suitable for deter- mining hardness of tooth face and slots, etc.
|
Suitable for hardness measuring of steel, cast steel, gray cast iron, nodular cast iron and non-ferrous metals.
|
| | | |
|
|
 | |
 |
|
 |
|
