| Compact design allows direct plug-on to measuring instruments. |

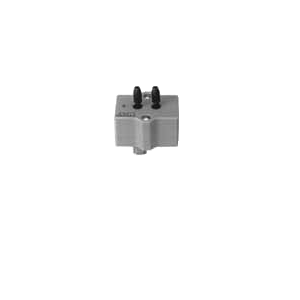

FDA612MA Pressure Module for Barometric Pressure
Type
● Compact design allows
direct plug-on to measuring instruments.
● High measurement
accuracy through piezo-resistive pressure sensor.
● Suitable for
operation with multi-channel measuring instruments and for position-indifferent
measurements at stationary installations when used with extension cable.
|
| Technical Data: |
| Measuring range: |
700 to 1050 mbar
(total range 0 to 1050 mbar) |
| Accuracy: |
±0.5% (typ. 0.1%) of fin. val. |
| Nominal temperature: |
22°C ±3K |
| Overload capacity: |
max. 2-fold measuring range |
| Air humidity: |
10 to 90%
non-condensing |
| Temperature drift: |
max. 1% of final value
(typ. ± 0.6%) |
| Dimensions: |
37 x 36 x 22mm |
| Hose connection: |
Ø 5mm, 12mm long |
| Sensor material: |
aluminium, nylon,
silicone, silica gel |
| Type: |
| FDA612MA |
Pressure module
for barometric pressure |
Accessories:
| ZA9060AK1 |
Connecting cable
for press. measuring module, 0.2m |
| ZA9060VK2 |
Extension cable, 2m long |
| ZA9060VK4 |
Extension cable, 4m long |
|
| |
|
|
 | |
 |
|
 |
|
