| Compact design allows direct plug-on to measuring instruments. |

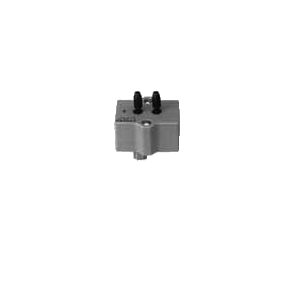

FDA612MR Pressure Module for Differential Pressure
Type
● Compact design allows
direct plug-on to measuring instruments.
● High measurement
accuracy through piezo-resistive pressure sensor.
● Suitable
for operation with multi-channel measuring
instruments and for position-indifferent measurements at
stationary installations when used with extension cable.
|
| Technical Data: |
| Measuring range: |
±1000 mbar diff. pressure
other ranges |
Accuracy of measurement
(zero point corrected): |
±0.5 % (typ. 0.2) of fin. val. |
| Overload capacity: |
max. 3-fold measuring range |
| Nominal temperature: |
22°C ± 2K |
| Temperature coefficient: |
±1.5 % (typ. 0.5) of fin. value |
| Operating temperature: |
-10 to +60°C |
| Air humidity: |
10 to 90%rH
(non-condensing) |
| Dimensions: |
37 x 36 x 22mm |
| Hose connections: |
5mm Ø, 12mm long |
| Sensor material: |
aluminium, nylon,
silicone, silica gel |
| Type: |
| FDA612MR |
(including one set of silicone hoses, 2 m)
Pressure module for differential pressure |
Accessories:
| ZA9060AK1 |
Connecting cable
for press. measuring module, 0.2m |
| ZA9060VK2 |
Extension cable, 2m long |
| ZA9060VK4 |
Extension cable, 4m long |
|
| |
|
|
 | |
 |
|
 |
|
